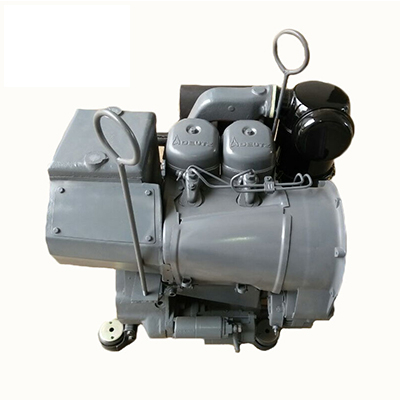

Deutz F2l511 Diesel Engine Air Cooled 2 Cylinder Diesel Engine

DEUTZ Diesel Engine: DEUTZ F1L511, DEUTZ F2L511, DEUTZ F2L912 ,DEUTZ F3L912 ,DEUTZ F4L912 ,DEUTZ F6L912 ,DEUTZ F4L913 ,DEUTZ F6L913 ,DEUTZ FL413
  • Deutz F2l511
  • HAUHEN

HAUHEN company main product: Deutz F2l511 Diesel Engine Air Cooled 2 Cylinder Diesel Engine

(Please contact us Get Free Quote Now. )


DeutzF2L511 2-cylinder diesel engine DeutzF2L511 2-cylinder diesel engine
Deutz F2l511 Diesel Engine - 1 Deutz F2l511 Diesel Engine - 2
DeutzF2L511 2-cylinder diesel engine DeutzF2L511 2-cylinder diesel engine
Deutz F2l511 Diesel Engine - 3 Deutz F2l511 Diesel Engine - 4


Product  Details


Model F2L511
Cylinder number 2 Cylinders
Chamber type Direct injection
Bore x stroke 100*105
15-Minute Output Rating, KW/HP
13.6 / 18.5 17 / 23.1  19.5 / 26.5 23 / 31.5 25 / 34 25.7 / 35
12-Hour Output Rating, KW/HP
11.5 / 15.6 14.6 / 19.9 16.5 / 22.4 19.5 / 26.5 21 / 28.5 21.8 / 29.5
 cooled type air cooled
Starting manner Electric
Net weight 155kg
Gross weight 180kg
Overall dimensionsL*W*H 562mm*530mm*676mm
12-hour output rating(hp) and Speed (r/min) 15.6/1500, 19.9/1800, 22.4/2000, 26.5/2500, 28.5/2800, 32/3000
Applicable Industries Generator set, agricultural irrigation pump
Warranty 1 year
Packing Paper and Carton
Certification ISO
Advantage

(1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect

(2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating

equipments, medium and small ship ect.

(3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area

and low pollution requested working environment


  AIR-COOLED DIESEL ENGINE


The B/FL511 912/913/C series air cooling diesel engine has the following

futures:

1. Good economical efficiency: This type of air cooling diesel engine adopts advanced technical index with the power per liter of 2123-26.20Ps/L, specific weight of 3.42-2.94kg/Ps, and the minimum pecific fuel consumption of 2 12g/kW.h( 156g/Ps h).

2. High reliability, long operating life: It has been found that air cooling diesel engine has lower abrasion loss than water cooling diesel engine. The abrasion loss of air cooling diesel engine is just 50% of that of water cooling diesel engine and the abrasion loss of piston rings in air cooling diesel engine is alse 0% of that in water cooling diesel engine

3. Strong adaptability: Air cooling diesel engine can be well started and work reliably even if the temperature is 40'C below zero, without freezing the cylinder block and without applying antifreeze solution

4. Easy maintenance: Without installing a set of parts same as that in a water cooling system, ai cooling diesel engine boasts of easy maintenance and lower maintenance fee.

5. Convenient to use: Air cooling diesel engine is free from the load of adding and discharging cooling water and avoiding the accidents of freezing the cylinder block, cylinder cover, radiator, etc


 About HAUHEN


HAUHEN Workshop HAUHEN Workshop

HAUHEN Workshop HAUHEN Workshop


As a professional manufacturer and supplier in the field of Deutz, HAUHEN's products cover DEUTZ engines, DEUTZ generator sets, DEUTZ engine accessories, etc. HAUHEN has been committed to providing one-stop solutions for domestic and foreign customers. HAUHEN continues to develop in a highly competitive market with high quality products, competitive prices and professional services. Because we can fully understand and meet customer needs, we have established cooperation and business relationships with many foreign countries and regions.


 THE FLYWHEEL SHELL CONNECTION SIZE (MM)



THE FLYWHEEL SHELL CONNECTION SIZE (MM)

Part Number

(combination Part Number)

Stop Mouth Aperture

Stop Mouth width

Flywheel Shell width

Threaded Hole Distribution Round

Bolt Quantity

2242071(SAE2)(027 0749) Ф447.7H7 12 122-0.3 Ф466.7±0.3 12×M10
2242050(SAE3)(027 0748) Ф409.58H7 12 122-0.3 Ф428.6±0.3 12×M10
2102308(SAE4)(027 0747)
Ф361.95H7 12
122-0.3
Ф381±0.3 12×M10



THE FLYWHEEL SHELL CONNECTION SIZE (MM)

Part Number

(combination Part Number)

Connection Plate Hole (PHI)

(ФA1)(ФA2)

Threaded Hole Distribution Round

(ФB1)(ФB2)

Screw Hole Depth / Thread Length


Bolt Quantity

From The Booy Joints Size

(C1)(C2)

2160698 Ф314.4H7 Ф295.3±0.3 22/17.5 8×M10 67.8
(0270395) Ф352.4H7 Ф333.4±0.3 22/17.5 8×M10 82.3
2240165 Ф263.5H7 Ф244.5±0.3 22/17.5 8×M10 59.8
(0270403) Ф314.4H7 Ф295.3±0.3 22/17.5 8×M10 67.8
2244250 Ф314.4H7 Ф295.3±0.3 22/17.5 8×M10 67.8
(0270396) Ф352.4H7 Ф333.4±0.3 22/17.5 8×M10 82.3
