Deutz F6L913
HAUHEN

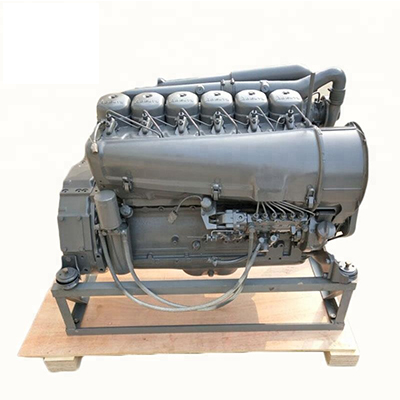

HAUHEN company main product: Deutz F6L913 Diesel Engine
(Please contact us Get Free Quote Now. )
 |  |
| Deutz F6L913 Diesel Engine - 1 | Deutz F6L913 Diesel Engine - 2 |
Product Details
| MODEL | F6L913 | |
| NUMBER OF CYLINDERS | 6 Cylinders | |
| CHAMBER TYPE | Direct injection | |
| BORE / STROKE | 102/125 | |
| DISPLACEMENT | 6.128 | |
| VEHICLEMENT | 96(131) / 2800 | |
| NET EFFECTIVE LIMITED AMOUNT OF OIL BY POWER | LONG INTERMITTENT MOST POWERFUL | 96(130) / 2800 |
| SHORT INTERMITTENT MOST POWERFUL | 85(116) / 2500 | |
| ISO STANDARD OIL A MOUNT LIMIT POWER | BIGGEST | 76(103) / 2300 |
| MINIMUM | 51(69) / 1500 | |
| MAXIMUM TORQUE ACCORDING TO | 384 / 1600 | |
| QUALITY | 454 | |
| DIESEL ENGINE SUPPORT SPACING | 842 | |
| STANDARD FLYWHEEL SHELL TYPE | 2+3+4 | |
| WARRANTY | 1 year | |
| PACKING | Paper and Carton | |
| CERTIFICATION | ISO | |
| ADVANTAGE | (1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect (2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating equipments, medium and small ship ect. (3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area and low pollution requested working environment | |
AIR-COOLED DIESEL ENGINE
The B/FL511 912/913/C series air cooling diesel engine has the following
futures:
1. Good economical efficiency: This type of air cooling diesel engine adopts advanced technical index with the power per liter of 2123-26.20Ps/L, specific weight of 3.42-2.94kg/Ps, and the minimum pecific fuel consumption of 2 12g/kW.h( 156g/Ps h).
2. High reliability, long operating life: It has been found that air cooling diesel engine has lower abrasion loss than water cooling diesel engine. The abrasion loss of air cooling diesel engine is just 50% of that of water cooling diesel engine and the abrasion loss of piston rings in air cooling diesel engine is alse 0% of that in water cooling diesel engine
3. Strong adaptability: Air cooling diesel engine can be well started and work reliably even if the temperature is 40'C below zero, without freezing the cylinder block and without applying antifreeze solution
4. Easy maintenance: Without installing a set of parts same as that in a water cooling system, ai cooling diesel engine boasts of easy maintenance and lower maintenance fee.
5. Convenient to use: Air cooling diesel engine is free from the load of adding and discharging cooling water and avoiding the accidents of freezing the cylinder block, cylinder cover, radiator, etc
About HAUHEN
As a professional manufacturer and supplier in the field of Deutz, HAUHEN's products cover DEUTZ engines, DEUTZ generator sets, DEUTZ engine accessories, etc. HAUHEN has been committed to providing one-stop solutions for domestic and foreign customers. HAUHEN continues to develop in a highly competitive market with high quality products, competitive prices and professional services. Because we can fully understand and meet customer needs, we have established cooperation and business relationships with many foreign countries and regions.
THE FLYWHEEL SHELL CONNECTION SIZE (MM)
Part Number (combination Part Number) : 2242071(SAE2)(027 0749) / 2242050(SAE3)(027 0748) / 2102308(SAE4)(027 0747)
Stop Mouth Aperture : Ф447.7H7 / Ф409.58H7 / Ф361.95H7
Stop Mouth width : 12
Flywheel Shell width : 122-0.3
Threaded Hole Distribution Round : Ф466.7±0.3 / Ф428.6±0.3 / Ф381±0.3
Bolt Quantity : 12×M10
THE FLYWHEEL CONNECTION SIZE (MM)
Part Number(combination Part Number) : 2160698 / (0270395) / 2240165 / (0270403) / 2244250 / (0270396)
Connection Plate Hole (PHI) (ФA1)(ФA2) : Ф314.4H7 / Ф352.4H7 / Ф263.5H7 / Ф314.4H7 / Ф314.4H7 / Ф352.4H7
Threaded Hole Distribution Round (ФB1)(ФB2) : Ф295.3±0.3 / Ф333.4±0.3 / Ф244.5±0.3 / Ф295.3±0.3 / Ф295.3±0.3 / Ф333.4±0.3
Screw Hole Depth / Thread Length : 22/17.5
Bolt Quantity : 8×M10
From The Booy Joints Size (C1)(C2) : 67.8 / 82.3 / 59.8 / 67.8 / 67.8 / 82.3
