Wholesale for Deutz serial spare parts,
Such as for Deutz 912, 913, 511, 1011/2011, 1013/2013, TBD234 etc spare parts
Deutz 912/913/914 Crankshaft Gear 02237256 02237253
Engine model | 912/913/914 | OEM | 02237256 |
weight | 0.602kg | Number of teeth | Z=28 |
MOQ | 1 piece | Warranty | 12 months |
Product description
The single net weight of the crankshaft gear is 0.602kg, the general number is 03362737 04156890 02237253 02237256, the overall size of the gear is 80mm in outer diameter, 36mm in inner diameter, 24mm in thickness, the number of teeth Z=28, the modulus M=2.5, the diameter of the locating hole is 8mm, and the height of the two end faces is 1mm. There are two locating points on the gear end face. The first one rotates left in the locating hole to align with the third tooth slot, and the second rotates left in the locating hole to align with the twelfth tooth slot. The gear is helical and left oblique.
Packaging instructions
1. Inner package by plastic bag; Outer package by carton
2. Special packing request acceptable
3. customized packing acceptable
Strong cartons packed by belt and all the cartons on strong wooden pallet.

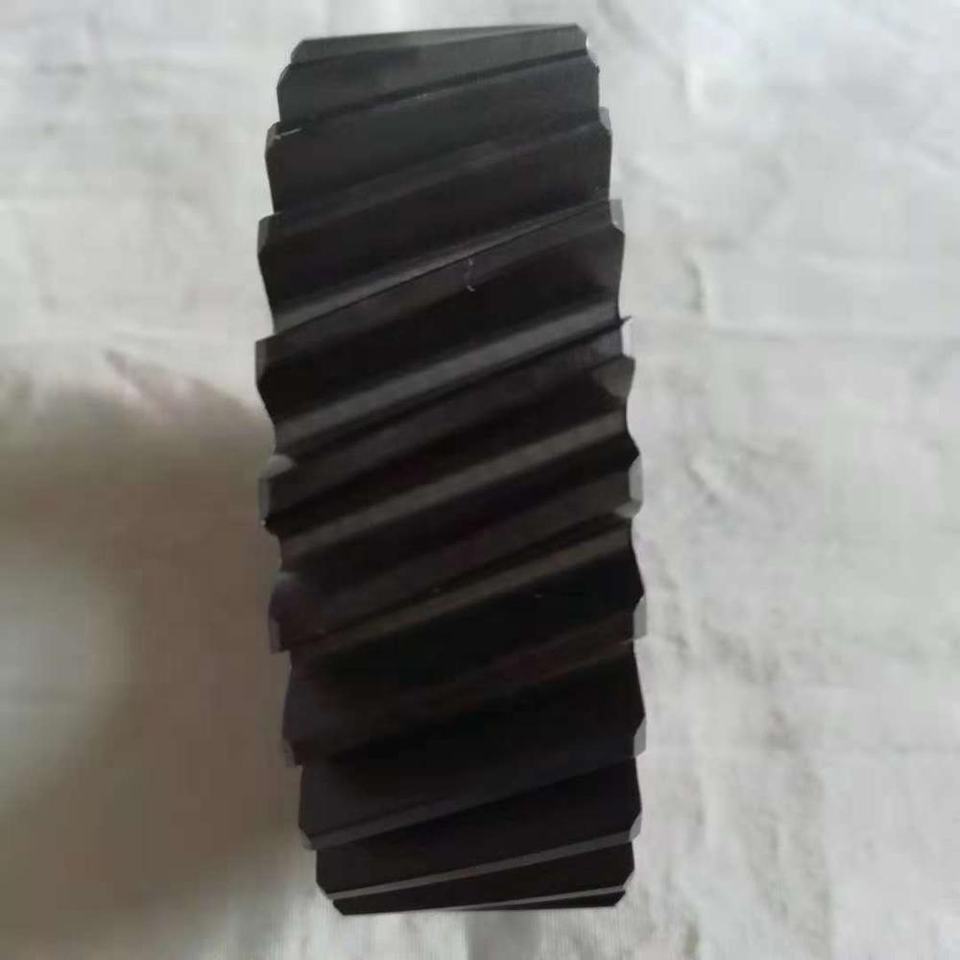

crankshaft gear-1

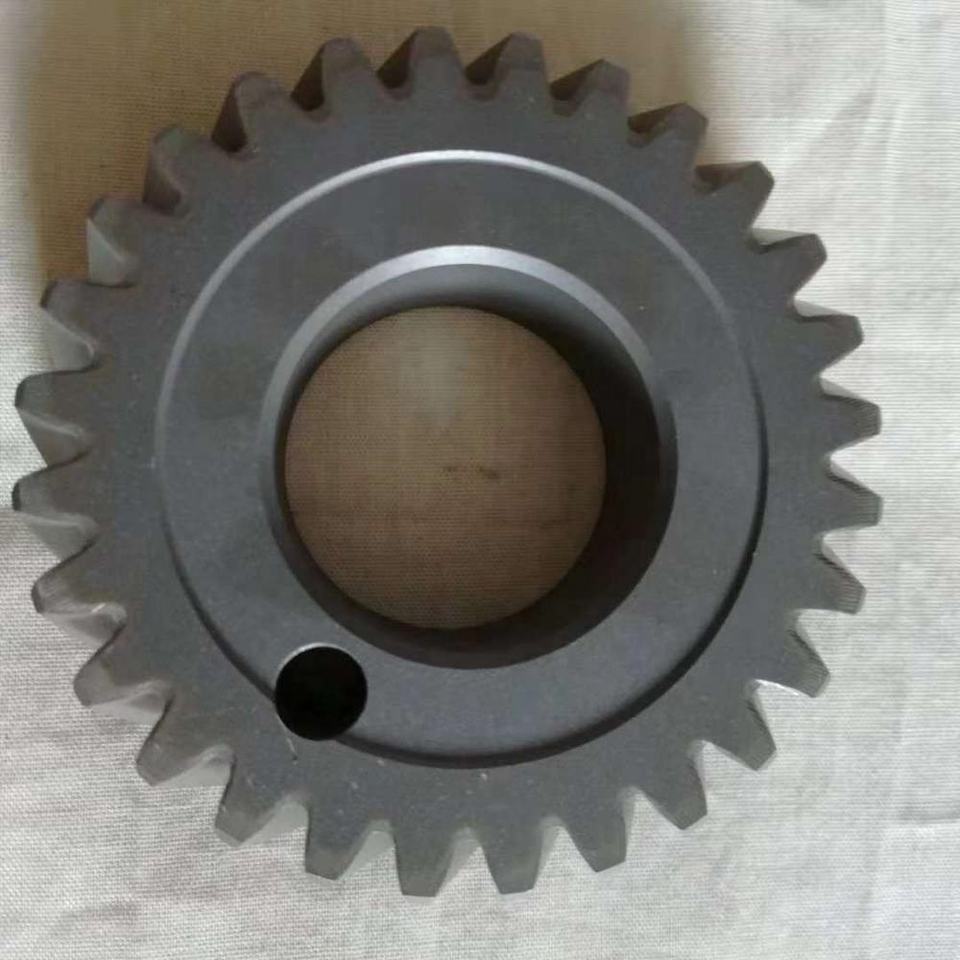

crankshaft gear-2

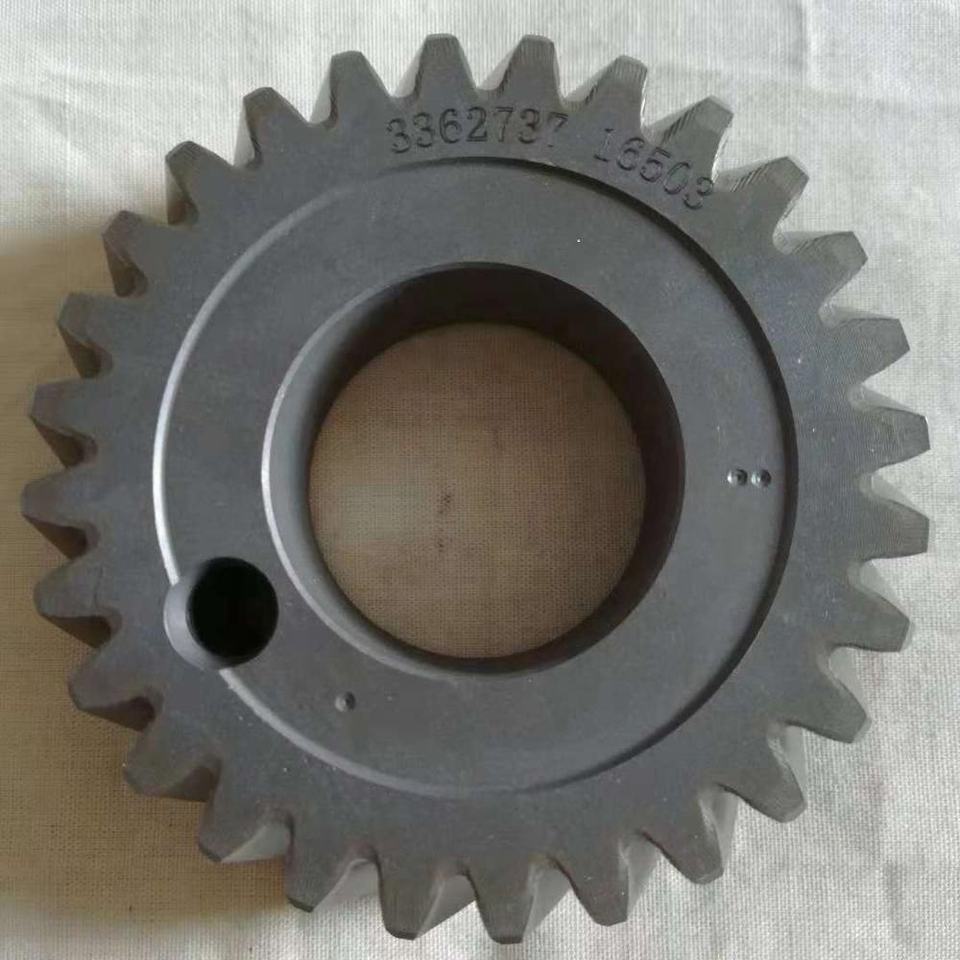

crankshaft gear-3
Company information:
Established in 2010, Xingtai Haoheng Trading Co., Ltd(abbreviation is “Hauhen”) is an factory and dealer for Deutz engine spare parts, Such as Deutz 912, 913, 511, 1011/2011, 1013/2013, TBD234 etc spare parts, with high quality. Click here to learn more >>
We will arrange shipment for you within 7-15 days after you pay the deposit. We will ensure the quality of our products as usual. Please contact us for quotation.
