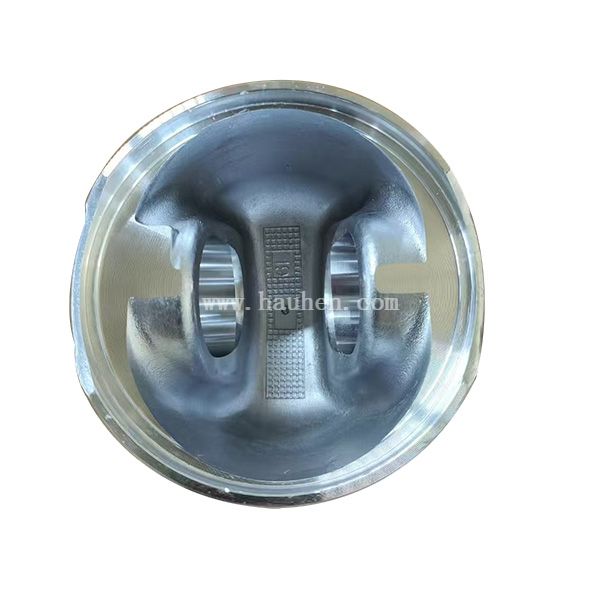

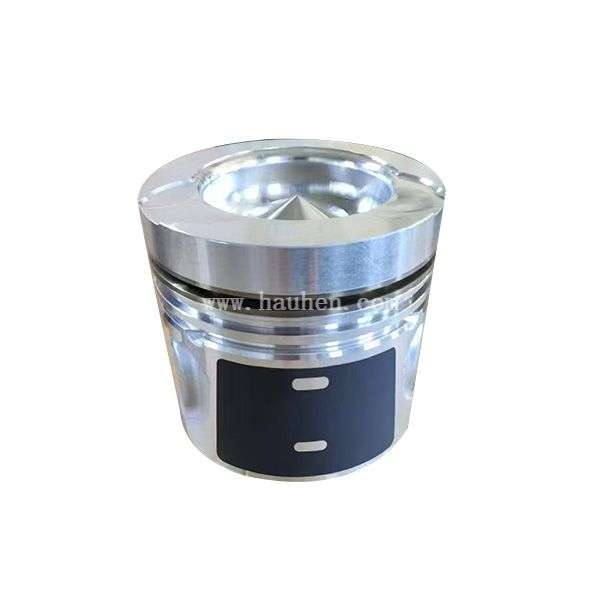

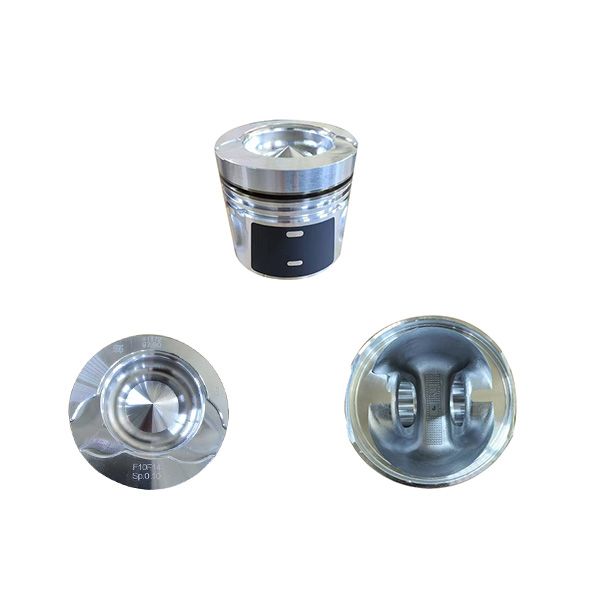

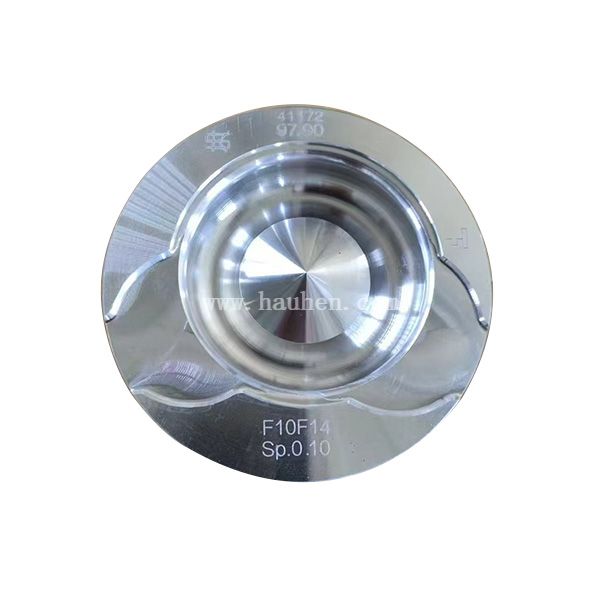

04124475 TCD3.6 L4 Piston with rings and pin for deutz engine

Availability:

Deutz TCD3.6 L4 Piston with rings and pin


Weight : 1,54 kg
Part Number: 098129
Cylinder Bore [mm]: 98 mm
Piston Clearance [mm]: 0,1 mm
Compression Height [mm]: 58 mm
Length [mm]: 88 mm
Recess Depth 1 [mm]: 17,24 mm
Valve Pocket Depth 1 [mm]: 1,2 mm
Valve Pocket Depth 2 [mm]: 1 mm
Recess Diameter [mm]: 61,5 mm
Standard Size [STD]: yes
Bolt Head Diameter [mm]: 34 mm
Bolt Length [mm]: 79 mm
Connecting Rod Design: Trapezoidal Connecting Rod
deutz TCD3.6 Piston set
